Medical Grade Cameras
MD331UI
Medical Grade PTZ Camera
Hearing Every Word. Seeing Every Detail.
- 1/2.8” 4K Sony Exmor CMOSImage Sensor
- 8 MegapixelsEffective Picture Elements
- ≥ 50 dBS / N Ratio

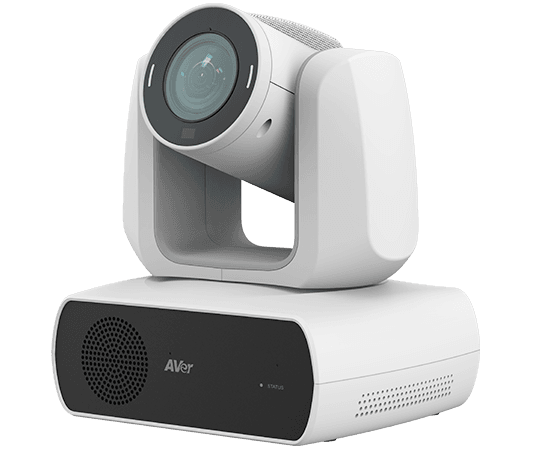

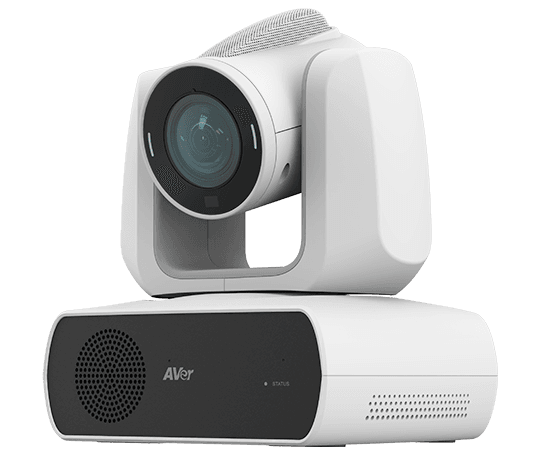

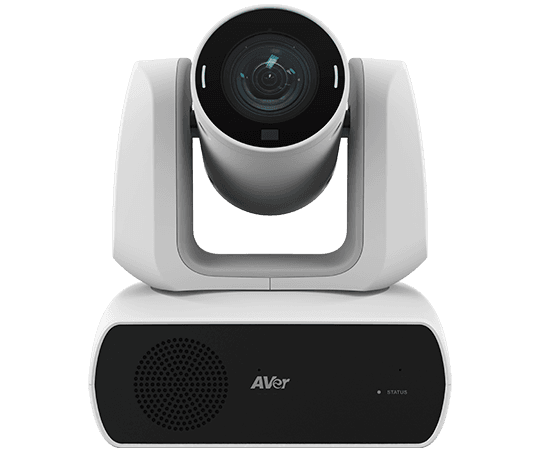

Product views
Overview
Designed for virtual rounding and remote care, the MD331UI is built to meet the demands of fast-paced and unpredictable clinical environments. Beyond delivering lossless 4K Ultra HD clarity with 30X optical zoom, it features embedded two-way audio — and takes it further with AVer's Audio Processing AI, ensuring focused sound pickup on the patient. Compliant with IEC 60601-1-2 EMC standards, this medical grade PTZ camera also integrates an on-device clinical AI engine for real-time monitoring. When clinicians can see every detail and hear every word the patient says, care stays seamless — and every virtual round feels as natural as being there in person.
Audio Processing AI: Hear Every Patient Clearly
Advanced Audio Processing AI captures the patient's voice clearly while minimizing environmental background noise, allowing remote clinicians to hear the patient without distraction.

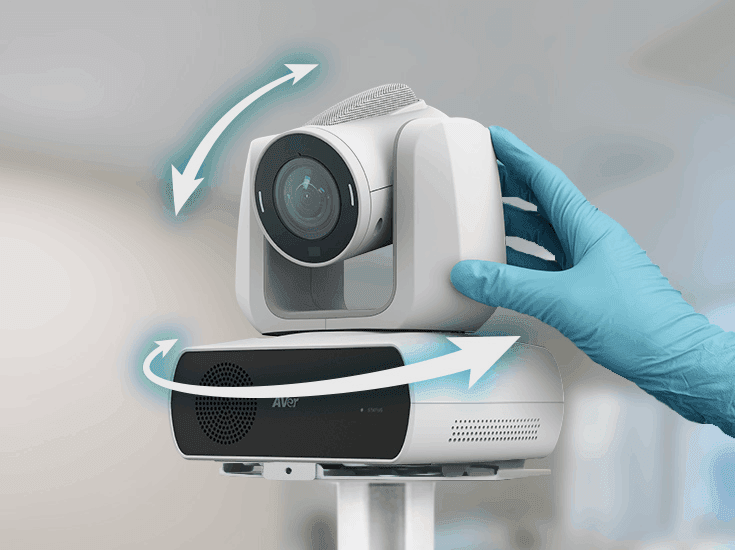

Effortless Camera Positioning: Zero-Lag Healthcare Workflow
Nurses can manually fine-tune the camera's position without needing to recalibrate, as the system retains its absolute positioning. This allows quick, intuitive adjustments while maintaining a smooth and uninterrupted care workflow.
* Manual tilt of the camera head should not exceed 90°.
† This feature is designed for fine adjustments; we do not recommend frequent or continuous manual repositioning.

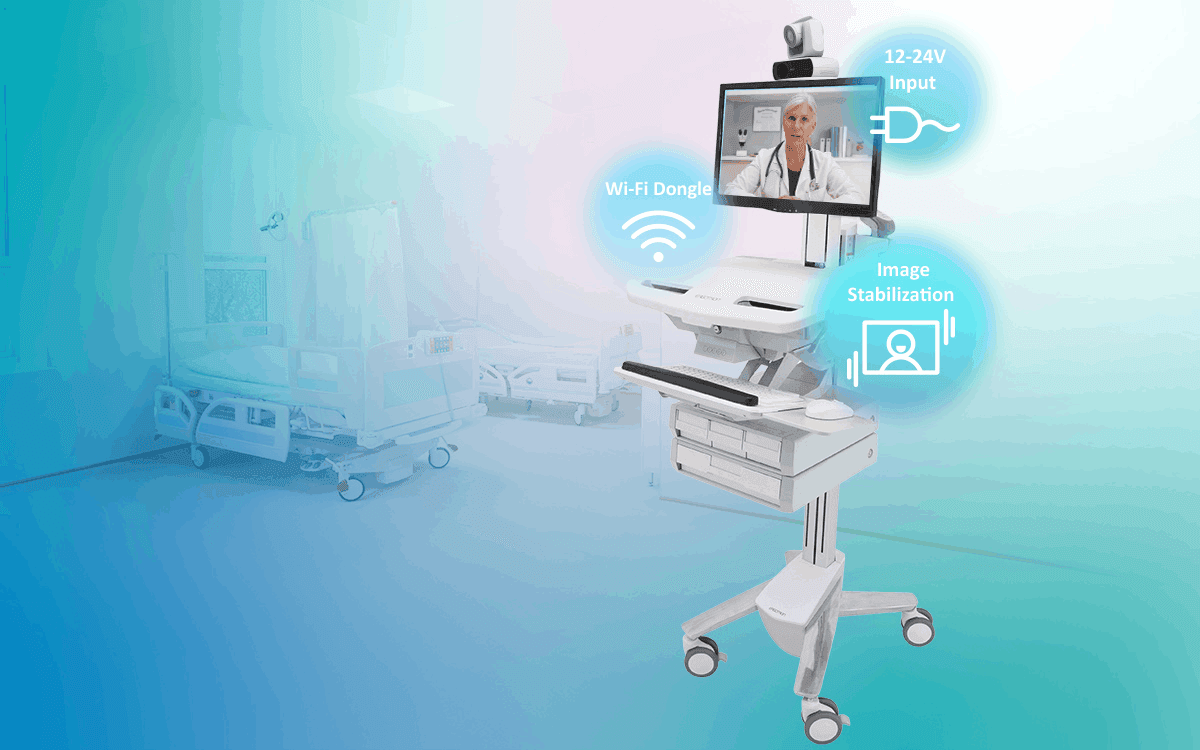

Ready for Battery-Powered High-Mobility Care
Experience uninterrupted clinical workflows with a 12–24V wide voltage input and optional Wi-Fi® connectivity, enabling seamless integration with battery-powered medical carts. Image Stabilization ensures a steady, blur-free view for remote specialists — even when the cart is moving between wards.
* By default, MD331UI supports the AVer Wi-Fi® Dongle. Third-party accessories may be supported through project-based system integration.
† Cart shown: Ergotron StyleView® Cart with LCD Pivot, LiFe Powered.

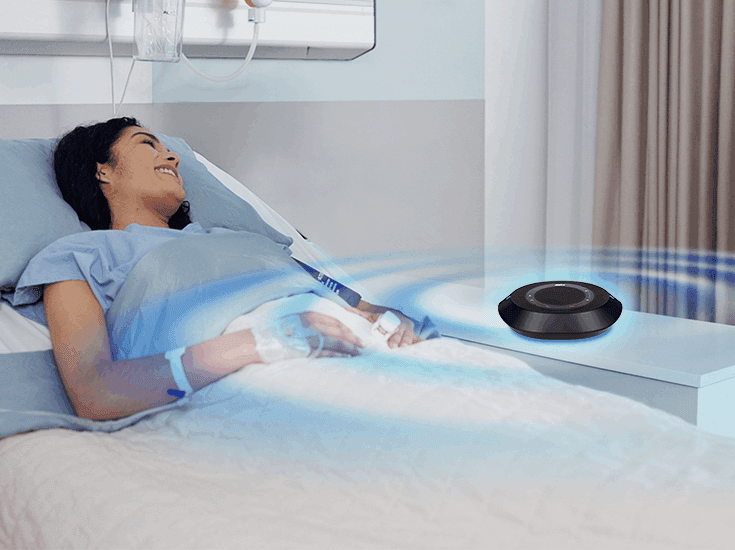

Expandable Audio Coverage for Any Ward Layout
The MD331UI comes with a built-in two-way audio for seamless communication, and for larger environments or multi-bed wards where greater audio coverage is needed, an external speakerphone can also be connected to ensure every corner of the room is reached.
* By default, MD331UI supports the AVer Expansion Speakerphone. Third-party accessories may be supported through project-based system integration.
Continuous Care with AI-Powered Detection
Patient safety is of the utmost importance, and the MD331UI is designed to ensure round-the-clock safety and care. With its IR Night Vision feature and Fall / Bed Egress Detection AI, the device provides 24/7 monitoring and ensures immediate alerts to caregivers when adverse events occur, allowing for rapid response and thereby enhancing patient safety.

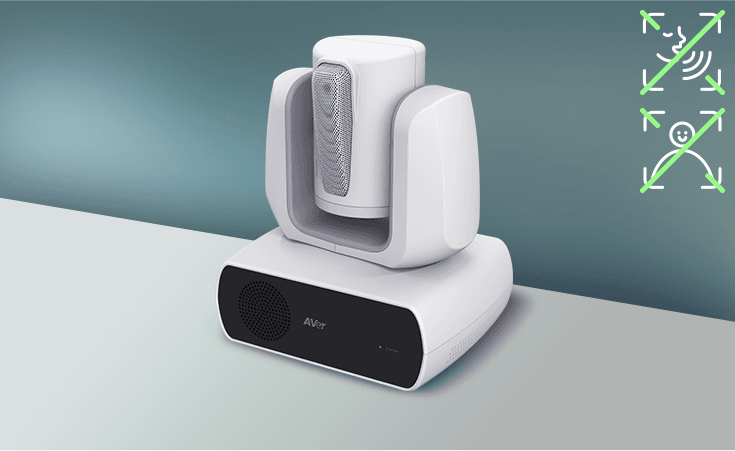

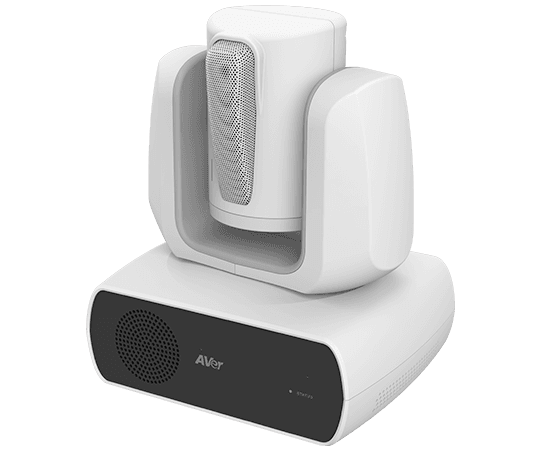

Your Privacy Matters
In any healthcare setting, it is crucial to respect patients' trust and privacy. The MD331UI offers two key privacy features: Local Privacy Mode, which turns off the transmission of both audio and video, ensuring no information leaves the room, and the Mosaic function, which automatically detects and applies a mosaic effect to bodies or faces within the field of view.
30X Optical Zoom
Bridge the distance with 30X optical zoom. Remote specialists can perform detailed wound inspections or skin assessments with lossless 4K clarity, achieving the same precision as an in-person exam.

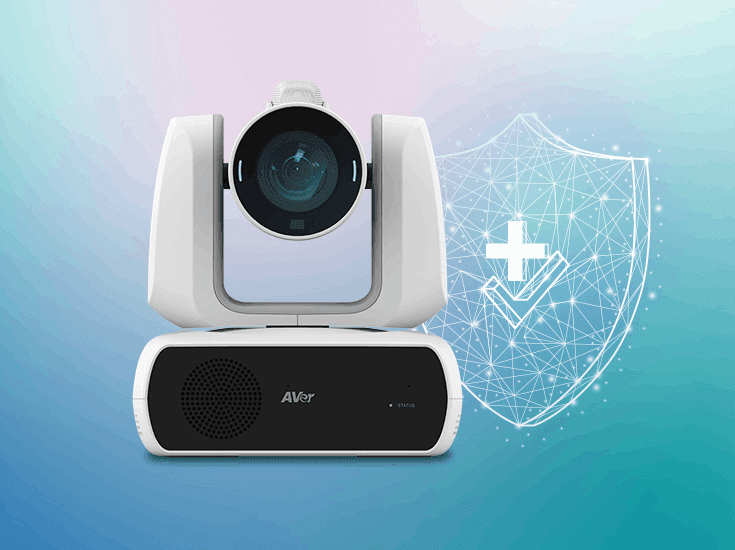

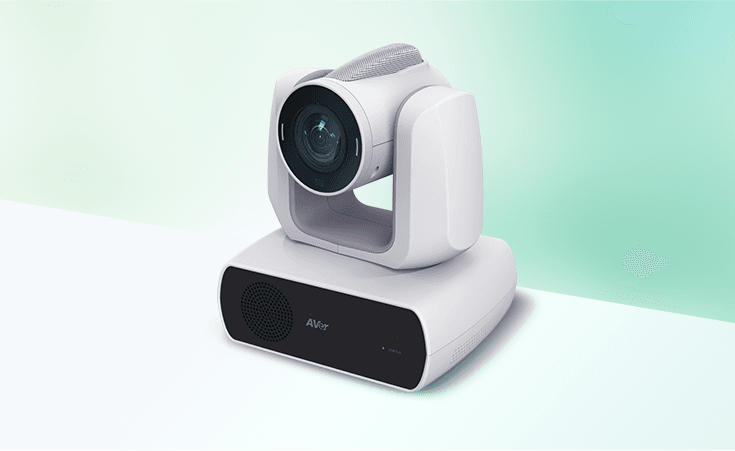

IEC 60601-1-2: Certified for Safer Care
Certified to IEC 60601-1-2, the MD331UI helps reduce the risk of electromagnetic interference in clinical settings, ensuring the MD331UI operates safely alongside sensitive life-support equipment while giving clinicians peace of mind in high-acuity environments.

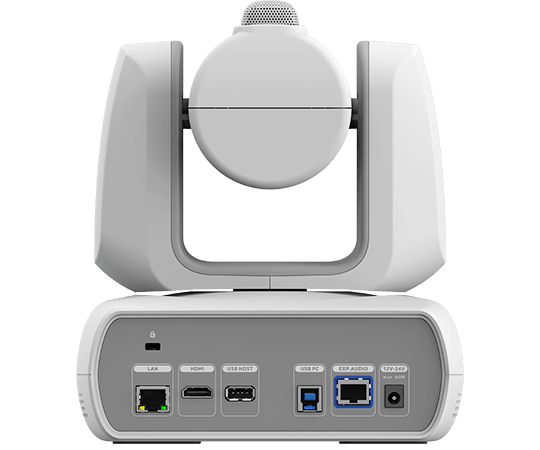

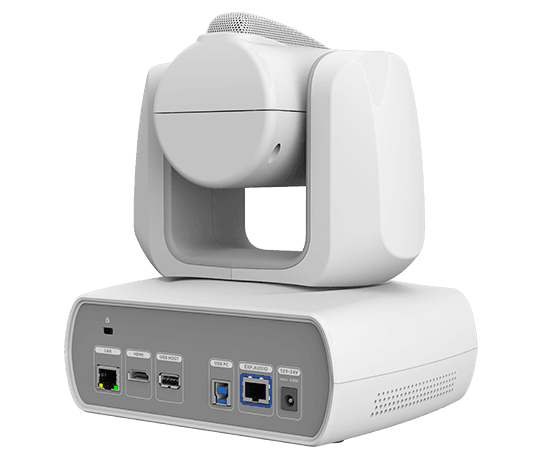

Hardware
- 1
- Camera Lens
- 2
- Speaker
- 3
- Microphone
- 4
- Microphone Array
- 5
- LED Indicator
- 6
- Kensington Slot
- 7
- RJ-45
- 8
- HDMI®
- 9
- USB Type-A (USB Host)
- 10
- USB Type-B 3.2 Gen 1
- 11
- RJ-45 (Audio Expansion)
- 12
- DC 12-24V
Standard Accessories
-
Remote Control
-
Power Adapter
-
064APOWERA5P(UK) 064APOWERCBX (EU) Power Cord
-
USB 3.0 Type-A to B Cable (1.5m)
-
Quick Start Guide
Optional Accessories
-
60S5120000AB Wall Mount Brackets (white)
-
60S3310000AC Ceiling Mount Brackets (white)
-
60S3300000AB PTZ Camera Controller CL01
-
60U3300000AC (20m) 60U3300000AB (10m) Expansion Speakerphone with Cable
Specifications
Camera
| Image Sensor | 1/2.8” 4K Sony Exmor CMOS |
|---|---|
| Effective Picture Elements | 8 Megapixels |
| Output Resolutions | Resolution: 4K / 1080p / 720p Frame Rates: 60 / 59.94 / 50 / 30 / 29.97 / 25 |
| Minimum Illumination | 0.7 lux (IRE50, F1.6, 30fps) |
| S / N Ratio | ≥ 50 dB |
| Gain | Auto, Manual |
| TV Line | 1000 (Center / Wide) |
| Shutter Speed | 1/1 to 1/10,000 sec |
| Exposure Control | Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR |
| White Balance | Auto, Manual |
| Optical Zoom | 30X |
| Digital Zoom | 1X |
| Total Zoom | 30X |
| Viewing Angles | DFOV: 75.5° (Wide) to 3.1° (Tele) HFOV: 68.0° (Wide) to 2.7° (Tele) VFOV: 41.7° (Wide) to 1.5° (Tele) |
| Focal Length | f = 4.3 mm (Wide) to 129 mm (Tele) |
| Aperture (Iris) | F = 1.6 (Wide) to 4.7 (Tele) |
| Minimum Working Distance | 0.1 m (Wide), 1.2 m (Tele) |
| Pan / Tilt Angles | Pan : ±170°, Tilt : ±90° |
| Preset Positions | 10 (IR), 256 (IP) |
| Camera Control - Interface | USB, IP |
| Camera Control - Protocols | USB, VISCA, CGI (IP) |
| Image Processing | Mirror / Flip / Freeze / WDR / BLC |
| Image Stability | Yes |
| Power Frequencies | 50 Hz, 60 Hz |
AI Function
| Modes | Face / Eyes Tracking, Fall / Bed Egress Detection |
|---|
Privacy
| Protection Modes | Local Privacy Mode, Mosaic Function |
|---|
General
| Power Requirement | Adapter: AC 100 - 240V to DC 12V / 3.34A Power Input: DC 12–24V, 60W Max. |
|---|---|
| Power Consumption | 60W |
| PoE | N / A |
| Dimensions (W x H x D) | 195.0 x 222.4 x 155.0 mm |
| Net Weight | 2.6 kg |
| Housing Material | Anti-UV |
| Application | Indoor |
| IR Night Vision | Yes |
| Security | Kensington Slot |
| Remote Control | Infrared |
| Operating Conditions | Temperature : 0 °C to +40 °C ; Humidity : 20% to 80% |
| Storage Conditions | Temperature : -20 °C to +60 °C ; Humidity: 20% to 95% |
Audio
| Channel | 2ch Stereo |
|---|---|
| Codec | AAC-LC (48K) |
| Built-in Microphone | Yes, 2 Microphones |
Interface
| Video Outputs | HDMI®, IP, USB |
|---|---|
| Audio Outputs | HDMI®, IP, USB |
| Audio Inputs | N/A |
IP Streaming
| Resolution | 4K 60fps |
|---|---|
| Network Video Compress Formats | H.264, H.265, MJPEG |
| Maximum Frame Rate | 4K 60fps |
| Bit-Rate Control Modes | VBR, CBR |
| Range of Bit-Rate Setting | 512 Kbps to 64 Mbps |
| Network Interface | 10 / 100 / 1000 Base-T |
| Multi-Stream Capability | 2 (RTSP / Web Page), 4K 60fps (max.) |
| Network Protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP |
USB
| Connector | USB Type-B 3.2 Gen 1 |
|---|---|
| Video Format | MJPEG, YUY2 |
| Maximum Video Resolution | 2160p |
| USB Video Class (UVC) | UVC 1.1 |
| USB Audio Class (UAC) | UAC 1.0 |
Web UI
| Live Video Preview | Yes |
|---|---|
| Camera PTZ Control | Pan, Tilt, Zoom, Focus, Preset Control |
| Camera/Image Adjustment | Exposure, White Balance |
| Network Configuration | DHCP, IP Address, Gateway, Subnet Mask, DNS |
Software Tools
| ViewCare | Support Windows® 10 or later |
|---|---|
| Room Management | Supports Windows® 7 or later, macOS® 11.6 or later |
Warranty
| Camera | 3 Years |
|---|---|
| Accessories | 1 Year |
Package Contents
| Package Contents | Camera, Remote Control, Power Adapter, Power Cord , USB 3.0 Type-A to B Cable, Quick Start Guide |
|---|---|
| Optional Accessories | L-Type Wall Mount, Ceiling Mount Bracket, AVer CL01 PTZ Camera Controller, AVer Expansion Speakerphone, AVer Wi-Fi® Dongle |
† Wi-Fi®, Wi-Fi CERTIFIED®, Wi-Fi Alliance®, the Wi-Fi logo, the Wi-Fi CERTIFIED logo, and other marks are trademarks of Wi-Fi Alliance.
‡ All HDMI trademarks and trade dress are registered trademarks or trademarks of HDMI Licensing Administrator, Inc.
