Medical Grade Cameras

MD120UI

Medical Grade PTZ Camera

Monitoring Without Distance

  • 1/2.8' CMOSImage Sensor
  • 8 MegapixelsEffective Picture Elements
  • ≥ 50 dBS/N Ratio
Request a quoteWhatsAppContact

Overview

The AVer MD120UI is the world's first PTZ camera specifically designed for patient monitoring. Powered by advanced AI technologies, monitoring patients has become a breeze, allowing healthcare providers to stay vigilant and attentive to their patients' needs. 20X optical zoom & 4K imaging capabilities along with IR night view function provide crystal-clear visual monitoring of patients, enabling 24-hour patient monitoring with no blind spots.

Superb Camera Quality

Thanks to MD120UI’s superior autofocus, zoom speed, and rapid camera movements, the 4K resolution at 20X optical zoom lens is able to capture even the smallest of details. This allows doctors and healthcare providers to make precise assessments efficiently with the help of up to 256 preset points provided by the camera.

md120ui

Innovative AI Technologies

The MD120UI is equipped with state-of-the-art AI algorithms that facilitate the automatic detection of patient’s body contour and capture specific areas of interest on patients, such as face and eyes (AI Facial/Eyes Tracking). By utilizing the AI modes, medical professionals can monitor patients and take necessary precautions with increased efficiency. Furthermore, AVer is creating more AI modes to further assist medical professionals and patients.

md120ui

Your Privacy Matters

In any healthcare setting, it is crucial to respect patients' trust and privacy. By activating MD120UI’s Privacy Mode, the transmission of video and audio data can be stopped, ensuring that no information leaves the ward. Rest assured that your privacy is protected.

md120ui
md120ui

Built-in Microphone for Better Real-time Monitoring

Embedded microphones can transmit all sounds in the patient room to the nursing station, alerting medical staff of real-time, crucial information for proper intervention and offering more possibilities for enhancing virtual care settings.

md120ui

AI Detection in Patient Ward

The MD120UI is equipped with an Edge-AI computer vision model that can automatically detect abnormal events in the ward. For instance, when a patient falls within the camera's field of view, it triggers an alert to notify nursing station personnel. These AI detection features are all built into the MD120UI camera device and do not require installing other sensor pads or wearables.

md120ui
md120ui

24/7 Monitoring with Night Vision

The MD120UI has moved patient monitoring a step forward with its Infrared Night Vision function. This makes 24/7 patient monitoring possible: healthcare providers can monitor patients around the clock without disturbing patient’s sleep or compromising their own safety, providing secure and efficient patient care.

Circular Packaging Today, Carbon-Smart Tomorrow

AVer's sustainable shipping packaging solutions feature eco-friendly recycled materials with easy disassembly and strategically plastic-reduced design: 35% recycled PE bags, 100% recycled paper-pulp cushioning, and 85% recycled cardboard boxes. Our space-optimized recyclable packaging reduces carbon footprint by 30%+ while cutting storage and shipping costs—delivering sustainable packaging solutions for eco-conscious users.

Product Appearance

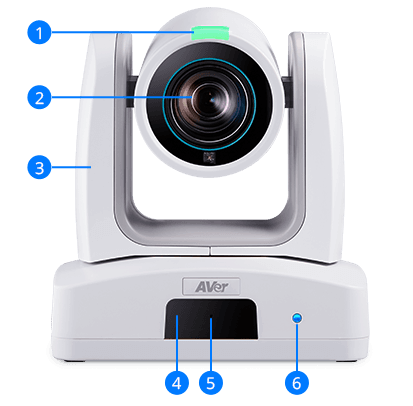

MD120UI Front
1
Privacy Indicator
2
IR Night Vision
3
Anti-UV Housing
4
IR Sensor
5
Microphone
6
Power Indicator

Standard Accessories

  1. Remote Control
    Remote Control
  2. Power Adapter
    Power Adapter
  3. Power Cord
    064APOWERA5P(UK) 064APOWERCBX (EU)
    Power Cord
  4. USB 3.0 Type-A to B Cable (1.5m)
    USB 3.0 Type-A to B Cable (1.5m)
  5. 1/4
    1/4"-20L 7.5 mm Screw (x2)
  6. M2 x 4 mm Screw (x3)
    M2 x 4 mm Screw (x3)
  7. M3 x 6 mm Screw (x3)
    M3 x 6 mm Screw (x3)
  8. Drilling Paper
    Drilling Paper
  9. Ceiling Mount Brackets (white)
    60S3310000AC
    Ceiling Mount Brackets (white)
  10. Cable Fixing Plates
    112AS310-AWL 112AS310-AWX
    Cable Fixing Plates
  11. Quick Start Guide
    Quick Start Guide

Optional Accessories

  1. Wall Mount Bracket (White)
    60S5120000AB
    Wall Mount Bracket (White)
  2. PTZ Camera Controller CL01
    60S3300000AB
    PTZ Camera Controller CL01

Specifications

Camera
Image Sensor1/2.8' CMOS
Effective Picture Elements8 Megapixels
Output ResolutionsResolutions: 4K / 1080p / 720p
Frame Rates: 60 / 59.94 / 50 / 30 / 29.97 / 25
Minimum Illumination0.5 lux (50 IRE, F1.6, Max. AGC, 1/30)
S/N Ratio≥ 50 dB
GainAuto, Manual
TV Lines1000 (Center / Wide)
Shutter Speed1/1s to 1/10,000s
Exposure ControlAuto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White BalanceAuto / Manual
Optical Zoom20X
Digital Zoom1X
Total Zoom20X
Viewing AnglesDFOV: 69.2° (Wide) to 4.1° (Tele)
HFOV: 62.3° (Wide) to 3.6° (Tele)
VFOV: 37.7° (Wide) to 2.1° (Tele)
Focal Lengthf = 4.5 mm (Wide) to 90 mm (Tele)
Aperture (Iris)F = 1.8 (Wide) to 4.7 (Tele)
Minimum Working Distance0.1 m (Wide) , 1.2 m (Tele)
Pan / Tilt AnglesPan: ±170°, Tilt: +90° / -30°
Pan / Tilt Speed (Manual)Pan: 0.1° to 100° / sec, Tilt: 0.1° to 100° / sec
Preset SpeedPan: 200° / sec, Tilt: 200° / sec
Preset Positions10 (IR), 256 (RS-232, RS-422, IP)
Camera Control - InterfacesRS-232 / RS-422 / Ethernet
Camera Control - ProtocolsVISCA (RS-232 / RS-422 / IP), CGI (IP)
Image ProcessingMirror / Flip / Freeze / WDR / BLC
Power Frequencies50 Hz, 60 Hz
AI Function
ModeEye Tracking
Privacy
Protection ModePrivacy Mode, Privacy Indicator
General
Power Requirement12V
Power Consumption24W
PoEPoE+ (IEEE802.3at)
Dimensions180(W) x 145(D) x 183.5(H) mm
Net Weight1.7 ± 0.1 kg
Housing MaterialAnti-UV
ApplicationIndoor
IR Night VisionYes
SecurityKensington Slot
IR Remote ControlYes
OperatingTemperature: 0 °C to +40 °C
Humidity: 20% to 80%
Storage ConditionsTemperature: -20 °C to +60 °C
Humidity: 20% to 95%
Audio
Channels2ch Stereo
CodecAAC-LC (48K)
Built-in Microphone1 (Omni-Directional)
Interface
Video OutputsHDMI, IP, USB
Audio OutputsHDMI, IP, USB
Audio InputsN/A
IP Streaming
Resolution4K 60fps
Network Video Compress FormatsH.264, H.265, MJPEG
Maximum Frame Rate4K 60fps
Bit-Rate Control ModesVBR, CBR
Range of Bit-Rate512Kbps to 64Mbps
Network Interface10 / 100 / 1000 Base-T
Multi-Stream Capability2 (RTSP / Web page), 4K 60fps Max.
Network ProtocolsIPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP RTP/RTCP, RTSP, RTMP,VISCA over IP
USB
ConnectorUSB 3.0 (Type-B)
Video FormatsMJPEG
Maximum Video Resolution2160p
USB Video Class (UVC)UVC 1.1
USB Audio Class (UAC)UAC 1.0
Web UI
Live Video PreviewYes
Camera PTZ ControlPan, Tilt, Zoom, Focus, Preset Control
Camera / Image AdjustmentExposure, White Balance, Picture
Network ConfigurationDHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
IP Search and Configuration ToolSupport Windows® 7 or later
ViewCareSupport Windows® 7 or later
PTZ Control PanelSupports iOS & iPadOS® 11 or later
Camera Setting ToolSupports Windows® 7 or later, macOS® 10.14 or later
Warranty
Camera3 Years
Accessories1 Year
Package Contents
Package ContentsCamera, Remote Control, Power Adapter, Power Cord, USB 3.0 Type-A to B Cable (1.5m), 1/4”-20 L=6.5 mm Screw (x2), M2 x 4 mm Screw (x3), M3 x 6 mm Screw (x3), Drilling Paper, Ceiling Mount Bracket, Cable Fixing Plate, Quick Start Guide
Optional AccessoriesAVer CL01 PTZ Camera Controller, L-Type Wall Mount
